Busses and other stuff for new graphics engine

Alltaken · Post by **Alltaken** » 14 May 2005 02:46

Sellu wrote:Thanks now its clear as crystal I would also like to see that 256x127 huge
pixel layout. How many angles would you prefer? Locomotion uses 64 sprites for busses, maybe double of that would be proper.

But then there will be the size issues..vehicles made in 256x127 would consume a lot of harddrive.

the number of sprites is more like...

15 degree incriments around a circle
then 4x4 up/down hills of various lengths

does that = 40?

this number was after a comprimise between smoothness in rotating and the need to keep ram usage reasonable.

i will try to export the animated rendering script from blender to 3ds (you use 3ds isn't it) basicly i have an empty in the middle of the 3d world that is rotating and tilting over the 40 frames using IPOs, all you would need to do is parent the vehicle to the empty and render out a 40 frame .png animation.

Alltaken

Sellu · Post by **Sellu** » 14 May 2005 07:20

Only 40? That will look bit clumsy but is totally understandable in 32 bit environment. How do you calculate the ram need for like 100x100x32 pixel vehicle that has 40 sprites?

Alltaken · Post by **Alltaken** » 14 May 2005 07:29

Sellu wrote:Only 40? That will look bit clumsy but is totally understandable in 32 bit environment. How do you calculate the ram need for like 100x100x32 pixel vehicle that has 40 sprites?

actually it looks pretty smooth.

it greatly depends on the scale of the rendered vehicles though, because on a small sprite 15 degrees is only a few pixels worht of displacement. but on a larger sprite 15 degrees is twice the pixel displacement.

so perhaps we need to create more rotation incriments for the larger zoom level.

we can still do that

.

Alltaken

Sellu · Post by **Sellu** » 15 May 2005 12:16

Alltaken rockz if he can get the workable organization to work for the new engine

I made my first foreigner locomotive, the BR 103, which is my favourite of german locs.

jvassie · Post by **jvassie** » 15 May 2005 12:24

Wow, Thats amazing!

Keep up the bril work

James

Alltaken · Post by **Alltaken** » 15 May 2005 12:27

Sellu, if these are at 100% scale (in all directions) i definatly think we should stick with 100% scale for vehicles, and just have them take up more than one square

.

this one looks fantastic.

Alltaken

Sellu · Post by **Sellu** » 15 May 2005 12:31

Hmm I am just worried that there will be too big cap between rails going to same direction making switches look too long.

Alltaken · Post by **Alltaken** » 15 May 2005 12:46

Sellu wrote:Hmm I am just worried that there will be too big cap between rails going to same direction making switches look too long.

how do you mean? you mean the space between signals. or the angle of how trains turn to joining tracks?

the new GFX engine actually change the track layout system (well its designed to) which means there will be no no more than 45 degrees turned in any one tile.

Alltaken

Sellu · Post by **Sellu** » 15 May 2005 12:53

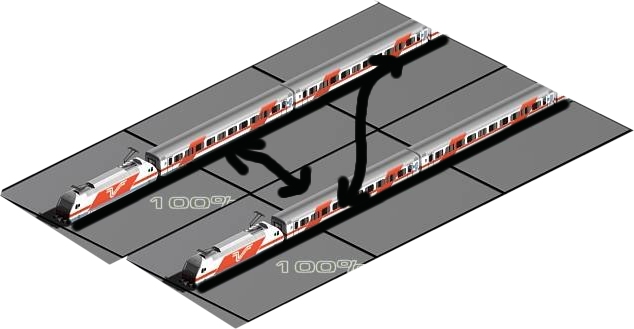

I mean this gap. Doesn't look very realistic railyard.
The tiles are 256x128:

Alltaken · Post by **Alltaken** » 15 May 2005 13:33

Sellu wrote:I mean this gap. Doesn't look very realistic railyard.
The tiles are 256x128:

put two tracks on one tile

divide the tile into 4 part, and put a track at edge of the first and second part, and the 3rd and 4th part

Code: Select all


|||||
 | |

those two locations pointed too

this will make it realisitc i am hoping

.

and as i said in PM, i think this will also solve the problem of trains being to long. if we can fit two trains on a tile then the length is not such a big deal

Alltaken

Purno · Post by **Purno** » 15 May 2005 13:35

Sellu wrote:I mean this gap. Doesn't look very realistic railyard.
The tiles are 256x128:

Use smaller tiles compared to the trains, as in Locomotion.

Sellu · Post by **Sellu** » 15 May 2005 13:40

Ok sounds good

Villem · Post by **Villem** » 15 May 2005 13:42

Purno wrote:
Sellu wrote:I mean this gap. Doesn't look very realistic railyard.
The tiles are 256x128:
Use smaller tiles compared to the trains, as in Locomotion.

makes houses look tiny compared to trains, wich is not the case in real life.

Purno · Post by **Purno** » 15 May 2005 14:15

Let houses use more tiles

Sellu · Post by **Sellu** » 15 May 2005 18:21

First steam locomotive is ready. I hope to see some very cool looking steam effects with new engine.

Arsenal · Post by **Arsenal** » 15 May 2005 19:28

Awesome!

I really do hope that graphics engine is coming along. I'd absolutely hate it if it doesn't come to fruition.

StavrosG · Post by **StavrosG** » 15 May 2005 19:29

yay! cool!
Just keep 'em coming!

Singaporekid · Post by **Singaporekid** » 16 May 2005 07:48

Is it supposed to be blue?
Looks cool though

ThorRune · Post by **ThorRune** » 16 May 2005 18:10

OMG that thing just is the friggin best thing i've seen so far in all of this topic, that's just absolutely amazing! I love it, both the modeling, the shading and the trains layout/design. Just great!

Raven · Post by **Raven** » 16 May 2005 21:58

This is a SideLine diesel Shunter (Co) "Deutz", as the ones used by Volkswagen to transport their famous VW 1200 and the 1961 VW 1500.

Hope you like it
