Re: General Dutch and Belgium Transport Talk

Post by hertogjan »

Illegal_Alien wrote:And we had an almost head to head accident;

(image)
The goodstrain had propane tanks.
And the almost-accident happened in an urban area. I don't want to think about what happens if such a train catches fire and explodes, especially there.

I think it's time for two things:
1. Avoid running trains with dangerous goods through urban areas. Since the Betuweroute is finished now, such trains should be using that route, since it runs through somewhat less densely populated areas. Moreover the signalling and safety on this new line is better. This also leads me to the next point...
2. Get rid of the old ATB system. The problem with that safety system is that it doesn't work below 40 km/h. In particular, it doesn't prevent trains from passing a red signal if it drives less than 40 km/h. And especially where a lot of train routes meet (so where accidents are more likely to happen), at stations, speeds are generally limited to 40 km/h. That this leads to dangerous situations is obvious: Almost all collisions in the Netherlands between trains seem to happen near stations.
There should be a new system which is able to stop trains when accidently passing a red signal. Such systems are available, but the majority of the rail network still use the old ATB system. If the new systems would be used, a lot of accidents and almost-accidents will be prevented.
User avatar
Illegal_Alien
Tycoon
Tycoon
Posts: 7824
Joined: 29 Sep 2004 20:07
Location: Kingdom of Far Far Away
Contact:

Re: General Dutch and Belgium Transport Talk

Post by Illegal_Alien »

As far i know they are putting in new systems. If i am correct ETCS (European Train Control System) will be replacing the ATB system. On some parts of newly build "bogen" (See list). Its already installed next to ATB but not activated. The following lines are if i am correct already equiped with ETCS:

- Utrechtboog / Amsterdam – Utrecht (ETCS level 2 + Signals + ATB-EG)
- Betuweroute (ETCS Level 2)
- HSL-Zuid (ETCS Level 2 with level 1 fallback)
:: Looking for the Locomotion section? Scroll down on the forum index or click here. :: See all releases in Locomotion section? Clicky here! :: Click here for the best tool ever! :: .datCrawler try it! ::
Following roadmap for releases: Whats a roadmap?
Releases of LocoTrains can be found by checking the posts of: LocoTrains - Goold old AMI Trains member of the first hour.
I have Private Messaging disabled, because of the stupid questions i get in my PM box.
Want to talk to me? Get on the #tycoon and #locomotion channel on OFTC thingy. :: Evolution of men: Loosing more braincells, everytime you post...
User avatar
Hertog-Dixi
Engineer
Engineer
Posts: 100
Joined: 20 May 2006 18:38
Location: The Hague, The Wetlands

Re: General Dutch and Belgium Transport Talk

Post by Hertog-Dixi »

To Get rid of the ATB is cost related.
ATB Nieuwe Generatie is much safer to work with but it's just to expensive to build it everywhere...
And for the new Betuweroute not al the locomotives have the new safety system required for the Betuweroute, and not al the traindrivers have the required certificates for the route...

But for me as a learning cargo traindriver this is what we call a "gierende hartkleppen moment" but luckily there where no accident.
Overall Winner Screenshot Capture ContestImage
User avatar
Illegal_Alien
Tycoon
Tycoon
Posts: 7824
Joined: 29 Sep 2004 20:07
Location: Kingdom of Far Far Away
Contact:

Re: General Dutch and Belgium Transport Talk

Post by Illegal_Alien »

I know that ProRail also had something called ATB++ ?

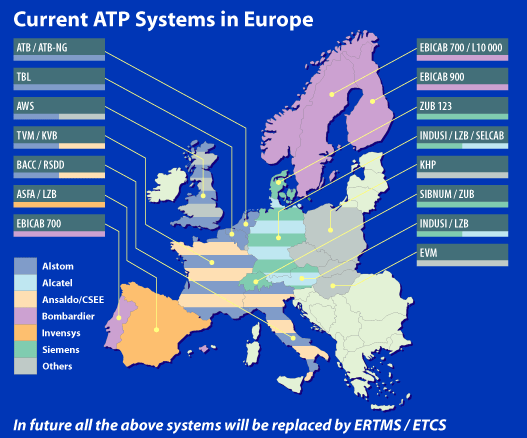

Btw here a nice picture of the different systems in Europe:
Attachments
:: Looking for the Locomotion section? Scroll down on the forum index or click here. :: See all releases in Locomotion section? Clicky here! :: Click here for the best tool ever! :: .datCrawler try it! ::
Following roadmap for releases: Whats a roadmap?
Releases of LocoTrains can be found by checking the posts of: LocoTrains - Goold old AMI Trains member of the first hour.
I have Private Messaging disabled, because of the stupid questions i get in my PM box.
Want to talk to me? Get on the #tycoon and #locomotion channel on OFTC thingy. :: Evolution of men: Loosing more braincells, everytime you post...
User avatar
Hertog-Dixi
Engineer
Engineer
Posts: 100
Joined: 20 May 2006 18:38
Location: The Hague, The Wetlands

Re: General Dutch and Belgium Transport Talk

Post by Hertog-Dixi »

I think (not sure) this the old ATB but with a safety that you can not drive past a red signal under 40 km/u.
But it's only in use around Amsterdam if i'm not mistaking...
Overall Winner Screenshot Capture ContestImage
Marco
Chairman
Chairman
Posts: 807
Joined: 24 Mar 2002 09:14
Location: Gotthardbahn, Switzerland, Europe

Re: General Dutch and Belgium Transport Talk

Post by Marco »

I have lost my original user id for 20842 :(
I am one of the founders of TT-Forums! Partly...
User avatar
chevyrider
Tycoon
Tycoon
Posts: 3285
Joined: 16 Sep 2004 09:52
Location: Amersfoort The Netherlands

Re: General Dutch and Belgium Transport Talk

Post by chevyrider »

Hertog-Dixi wrote:I think (not sure) this the old ATB but with a safety that you can not drive past a red signal under 40 km/u.
But it's only in use around Amsterdam if i'm not mistaking...
You are right.
Next step is upgrading the old "ATB" with the feature that you can never pass a red signal, even in the not now protected 40 km\h areas.

We also get a system to look ahead some 7 blocks to anticipate our speed.
We then can see if a slower train is ahead and adjust speed to get a more smoother and comfortable drive.

With the ERTMS system , signals will be removed.
You get double pointers in the speedometer.
One needle shows actual speed, the other the desired speed for your brake-distance.
When you keep your speed lower than what the last one shows , you can always stop in time.
-
-
39 years experience with trains and still driving.
-
-
User avatar
Hyronymus
Tycoon
Tycoon
Posts: 13235
Joined: 03 Dec 2002 10:36
Location: The Netherlands
Contact:

Re: General Dutch and Belgium Transport Talk

Post by Hyronymus »

I can't imagine the NS refitting all current stock for ERTTS, chevyrider. Are there preliminary plans on what stock will get ERTMS?
User avatar
Illegal_Alien
Tycoon
Tycoon
Posts: 7824
Joined: 29 Sep 2004 20:07
Location: Kingdom of Far Far Away
Contact:

Re: General Dutch and Belgium Transport Talk

Post by Illegal_Alien »

I only know that a V-IRM is 25kV ready (And maybe ERMTS/ETCS?) It only needs to have some components.
:: Looking for the Locomotion section? Scroll down on the forum index or click here. :: See all releases in Locomotion section? Clicky here! :: Click here for the best tool ever! :: .datCrawler try it! ::
Following roadmap for releases: Whats a roadmap?
Releases of LocoTrains can be found by checking the posts of: LocoTrains - Goold old AMI Trains member of the first hour.
I have Private Messaging disabled, because of the stupid questions i get in my PM box.
Want to talk to me? Get on the #tycoon and #locomotion channel on OFTC thingy. :: Evolution of men: Loosing more braincells, everytime you post...
User avatar
chevyrider
Tycoon
Tycoon
Posts: 3285
Joined: 16 Sep 2004 09:52
Location: Amersfoort The Netherlands

Re: General Dutch and Belgium Transport Talk

Post by chevyrider »

Hyronymus wrote:I can't imagine the NS refitting all current stock for ERTTS, chevyrider. Are there preliminary plans on what stock will get ERTMS?
Trains have a life span of about 40 years.
They have to install the new safety system there for.
I heard that all old ATB-systems have to work also under 40 km/h within 2 years..
But this will be a temporally solution.
If you want that trains run closer together, you have to get rid of the old block system which separates trains in distances of at least 1400 meters.
In practice this is doubled, cause no engineer wishes to drive constantly with the sight on a yellow signal ahead.
So we slow down a bit and make it two blocks, there by we only pass green signals on the mainlines.
The ATB only can display speeds of 40, 60, 80, 130 and 140 or more.
When local-track-speed is 90, it show 130 km/h , which gives a safety gap of 40 km/h.
-
-
39 years experience with trains and still driving.
-
-
User avatar
chevyrider
Tycoon
Tycoon
Posts: 3285
Joined: 16 Sep 2004 09:52
Location: Amersfoort The Netherlands

Re: General Dutch and Belgium Transport Talk

Post by chevyrider »

Illegal_Alien wrote:I only know that a V-IRM is 25kV ready (And maybe ERMTS/ETCS?) It only needs to have some components.
You're right, the ABV3/4 carriages of the VIRM (THE ONE WITH THE PANTOGRAPH) are prepared to get the additional transformer.
This is a huge heavy component.
You can see that the suspension is build for it.
On the moment the buffer height is some 5 till 10 centimeters higher than the rest of the train.
That will be normal after the placing of the transformer.
-
-
39 years experience with trains and still driving.
-
-
User avatar
Illegal_Alien
Tycoon
Tycoon
Posts: 7824
Joined: 29 Sep 2004 20:07
Location: Kingdom of Far Far Away
Contact:

Re: General Dutch and Belgium Transport Talk

Post by Illegal_Alien »

Pictures found of the Veolia GTW:


source: http://www.beneluxspoor.net
:: Looking for the Locomotion section? Scroll down on the forum index or click here. :: See all releases in Locomotion section? Clicky here! :: Click here for the best tool ever! :: .datCrawler try it! ::
Following roadmap for releases: Whats a roadmap?
Releases of LocoTrains can be found by checking the posts of: LocoTrains - Goold old AMI Trains member of the first hour.
I have Private Messaging disabled, because of the stupid questions i get in my PM box.
Want to talk to me? Get on the #tycoon and #locomotion channel on OFTC thingy. :: Evolution of men: Loosing more braincells, everytime you post...
User avatar
Illegal_Alien
Tycoon
Tycoon
Posts: 7824
Joined: 29 Sep 2004 20:07
Location: Kingdom of Far Far Away
Contact:

Re: General Dutch and Belgium Transport Talk

Post by Illegal_Alien »

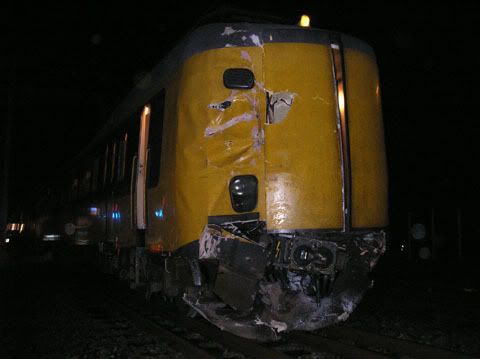

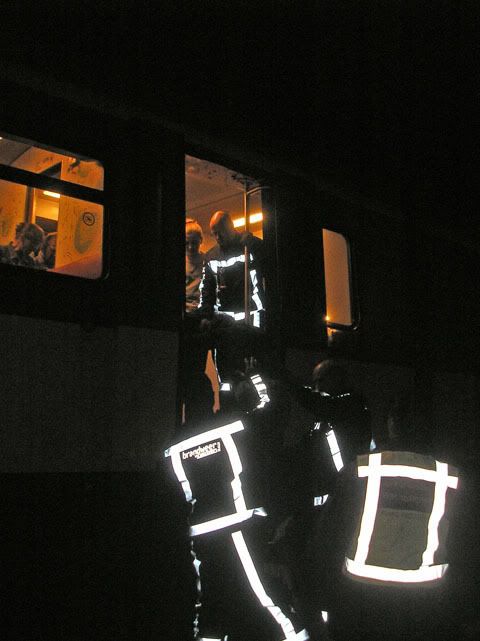

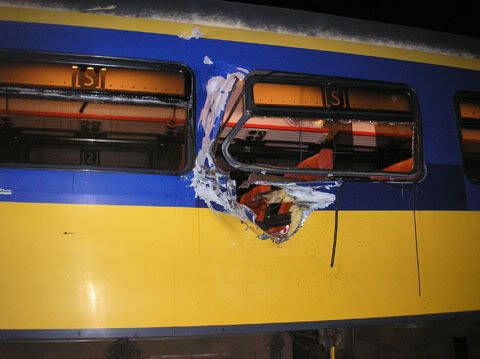

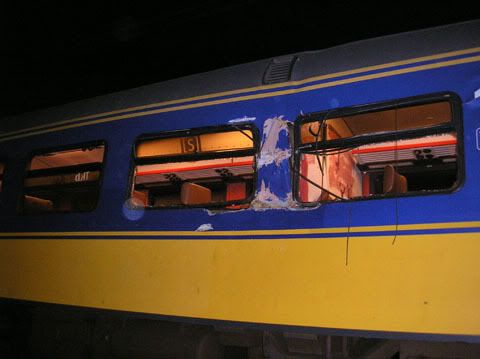

Train got hit by mobile crane;

Few slightly wounded;





Source: http://kazerneosdorp.web-log.nl/ (dutch)

And for Protos lovers; on 10 sept. 2007 they will be in service next to some Plan V`s and DH-1`s (Veenexxpress). So a nice combination of trains :P
:: Looking for the Locomotion section? Scroll down on the forum index or click here. :: See all releases in Locomotion section? Clicky here! :: Click here for the best tool ever! :: .datCrawler try it! ::
Following roadmap for releases: Whats a roadmap?
Releases of LocoTrains can be found by checking the posts of: LocoTrains - Goold old AMI Trains member of the first hour.
I have Private Messaging disabled, because of the stupid questions i get in my PM box.
Want to talk to me? Get on the #tycoon and #locomotion channel on OFTC thingy. :: Evolution of men: Loosing more braincells, everytime you post...
User avatar
XeryusTC
Tycoon
Tycoon
Posts: 15415
Joined: 02 May 2005 11:05
Skype: XeryusTC
Location: localhost

Re: General Dutch and Belgium Transport Talk

Post by XeryusTC »

And for Protos lovers
Do those even exist?
Don't panic - My YouTube channel - Follow me on twitter (@XeryusTC) - Play Tribes: Ascend - Tired of Dropbox? Try SpiderOak (use this link and we both get 1GB extra space)
OpenTTD: manual #openttdcoop: blog | wiki | public server | NewGRF pack | DevZone
Image Image Image Image Image Image Image
User avatar
Illegal_Alien
Tycoon
Tycoon
Posts: 7824
Joined: 29 Sep 2004 20:07
Location: Kingdom of Far Far Away
Contact:

Re: General Dutch and Belgium Transport Talk

Post by Illegal_Alien »

Yes i am one of them :)
:: Looking for the Locomotion section? Scroll down on the forum index or click here. :: See all releases in Locomotion section? Clicky here! :: Click here for the best tool ever! :: .datCrawler try it! ::
Following roadmap for releases: Whats a roadmap?
Releases of LocoTrains can be found by checking the posts of: LocoTrains - Goold old AMI Trains member of the first hour.
I have Private Messaging disabled, because of the stupid questions i get in my PM box.
Want to talk to me? Get on the #tycoon and #locomotion channel on OFTC thingy. :: Evolution of men: Loosing more braincells, everytime you post...
User avatar
Illegal_Alien
Tycoon
Tycoon
Posts: 7824
Joined: 29 Sep 2004 20:07
Location: Kingdom of Far Far Away
Contact:

Re: General Dutch and Belgium Transport Talk

Post by Illegal_Alien »

NS has presented his newest trains; picture can be found here; http://www.anp-photo.com/search.pp

use "Sprinter" as searchword. These will be used to replave the Plan V / T. An additional 64 are bought (32 4part and 32 6 part) Build by Siemens and Bombardier.
:: Looking for the Locomotion section? Scroll down on the forum index or click here. :: See all releases in Locomotion section? Clicky here! :: Click here for the best tool ever! :: .datCrawler try it! ::
Following roadmap for releases: Whats a roadmap?
Releases of LocoTrains can be found by checking the posts of: LocoTrains - Goold old AMI Trains member of the first hour.
I have Private Messaging disabled, because of the stupid questions i get in my PM box.
Want to talk to me? Get on the #tycoon and #locomotion channel on OFTC thingy. :: Evolution of men: Loosing more braincells, everytime you post...
DeletedUser21
Tycoon
Tycoon
Posts: 11501
Joined: 20 Sep 2004 22:45

Re: General Dutch and Belgium Transport Talk

Post by DeletedUser21 »

Very nice! :D Good pictures. Too bad there aren't many of them as of yet. :P

However I heard something about new doubledeck trains aswell. What's up with that? :)
User avatar
Illegal_Alien
Tycoon
Tycoon
Posts: 7824
Joined: 29 Sep 2004 20:07
Location: Kingdom of Far Far Away
Contact:

Re: General Dutch and Belgium Transport Talk

Post by Illegal_Alien »

The same as the ones we already have.
:: Looking for the Locomotion section? Scroll down on the forum index or click here. :: See all releases in Locomotion section? Clicky here! :: Click here for the best tool ever! :: .datCrawler try it! ::
Following roadmap for releases: Whats a roadmap?
Releases of LocoTrains can be found by checking the posts of: LocoTrains - Goold old AMI Trains member of the first hour.
I have Private Messaging disabled, because of the stupid questions i get in my PM box.
Want to talk to me? Get on the #tycoon and #locomotion channel on OFTC thingy. :: Evolution of men: Loosing more braincells, everytime you post...
User avatar
Purno
Tycoon
Tycoon
Posts: 16659
Joined: 30 Mar 2004 12:30
Location: Almere, The Netherlands

Re: General Dutch and Belgium Transport Talk

Post by Purno »

What's with the boxes underneath the seats in that sprinter? Those suck, can't put my feet underneath the seats anymore :(
Contributor to the The 2cc Set and Dutch Trainset. Inventor of the Metro concept. Retired Graphics Artist.
Image Image
Download TT | Latest TTDPatch | OpenTTD | OpenTTDCoop | BaNaNaS: OpenTTD content system | 2048² OTTD scenario of the Netherlands
GRF Codec | GRF Crawler | GRF Maker | Usefull graphics & tools sites | NML Documentation Wiki | NFO Documentation Wiki
All my graphics are licensed under GPL. "Always remember you're unique, just like everyone else."
User avatar
Illegal_Alien
Tycoon
Tycoon
Posts: 7824
Joined: 29 Sep 2004 20:07
Location: Kingdom of Far Far Away
Contact:

Re: General Dutch and Belgium Transport Talk

Post by Illegal_Alien »

And here is a Bombardier RandstadRail Metro in construction:


Looking sexy 8)
:: Looking for the Locomotion section? Scroll down on the forum index or click here. :: See all releases in Locomotion section? Clicky here! :: Click here for the best tool ever! :: .datCrawler try it! ::
Following roadmap for releases: Whats a roadmap?
Releases of LocoTrains can be found by checking the posts of: LocoTrains - Goold old AMI Trains member of the first hour.
I have Private Messaging disabled, because of the stupid questions i get in my PM box.
Want to talk to me? Get on the #tycoon and #locomotion channel on OFTC thingy. :: Evolution of men: Loosing more braincells, everytime you post...
Post Reply

Return to “Real-World Transport Discussion”

Who is online

Users browsing this forum: No registered users and 4 guests
