AuzBridges

[GarryG]

Please can u check your bridges? They don't work with maglev and monorail ...
There are only these 2 options.

I never coded my bridges to use maglev and monrail ..

[GarryG]

Here some bridges I designed for those who want a underground subway network.

There is rail, road, meglev and monorail bridges .. the road and rail do not have pylons or side fences. The meglev and monorail do have pylons .. no idea why as I did not draw any. They don;t have fences.

Image of the meglev and monorail bridges .. forgot to do a rail and road one.


Game file

Auz_subway_bridges.grf

(47.15 KiB) Downloaded 186 times

Source files

AuzSubwayBridge04Source.rar

(123.82 KiB) Downloaded 136 times

Took me days to get this far with them .. no idea if I update my main bridge set to use the meglev and monorail as it a bugger of a job and I not motivated to try. Maybe in a month or two might look at it.

Cheers

[Quast65]

The meglev and monorail do have pylons .. no idea why as I did not draw any.

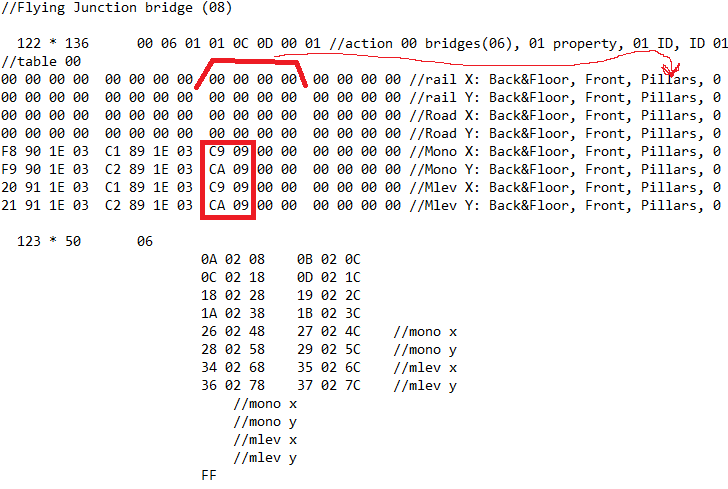

Been a while since I did a bridge, but see what happens if you set the values in the red box to 00


I believe those correspond to the appearance of pylons.
You should set those to 00 in table 00 to table 05

By the way, i do also believe that all values in those tables should be set to 00, because you provide new values for those in the next column.

[GarryG]

Been a while since I did a bridge, but see what happens if you set the values in the red box to 00

Yep that worked ..

I notice all code for rail and roads are are 00 to the left of the red mark you made.

I wonder now if I changed the code for the mono and mlev to 00 will it allow the tracks to build automatically on the bridges instead of me drawing them manually.

I not have time to test just now as my boy wants his turn so will try that idea tomorrow ..

Cheers pal

[Quast65]

I notice all code for rail and roads are are 00 to the left of the red mark you made.

Yeah, thats what I meant with this:

Code: Select all

By the way, i do also believe that all values in those tables should be set to 00, because you provide new values for those in the next column.

I wonder now if I changed the code for the mono and mlev to 00 will it allow the tracks to build automatically on the bridges instead of me drawing them manually.

Nope..

Possibly you'll have more chance with keeping those values and then have transparent blue in your graphics where the tracks should be..
I am not sure, but i think those values referr to the original graphics (thats possibly why you got pylons, even though you didnt even draw them)
Never tested that though..

Easiest is to just load a GRF that provides mono/mglv-tracks. (that is what i recommend with my bridges)

[wallyweb]

I am not sure, but i think those values referr to the original graphics (thats possibly why you got pylons, even though you didnt even draw them)

That is correct.

[GarryG]

Easiest is to just load a GRF that provides mono/mglv-tracks. (that is what i recommend with my bridges)

Think I do same as coding those mono and mglv not easy .. I don't think I will convert my main set as many of my bridges not suitable mono and mglv any way.

I wonder maybe I just remove them from set I done for subway overlaps and just add a few different road types.

Appreciate all the help you provided.

[Quantom]

Other day I tried to get the GUI's to work for the bridges to display the correct bridge pic when selecting the one you want .. but failed.

Might get it right one of these days.

Anyway I don't know why but the previous few versions of the bridges might have replaced these communication towers
Comm Tower02.png
with this.
Comm Tower01.png

All because I had just one piece of code wrong in the GUI section.

So here the fixed version ( I hope).

Can me get a source code & files? I want to combine some of your coll briges with U&briges set!
Thanks a lot!

[GarryG]

Can me get a source code & files? I want to combine some of your coll briges with U&briges set!
Thanks a lot!

No problem.

Much of the credit for source goes to the American Bridges set..

[Emperor Jake]

Hi Garry, do you still have the graphics for this old wide version of the Hexham bridge?

I'm working on a new Japanese bridge set which uses some graphics adapted from AuzBridge, hope you do't mind

[GarryG]

Hi Garry, do you still have the graphics for this old wide version of the Hexham bridge?

I do have some of the bridge in the picture hope this helps.

EDIT:

Sorry it not the wide one but hope you can still use it. The steel truss road bridge has wide road girders but not the towers.
