Some Requests (Help Needed)
Moderator: Graphics Moderators
Re: Some Requests [90% Ready!] (Help Needed with Station NFO
I Completed Yesterday my Station GRF but now is the Question: Can i Release that?
They are the Graphics from the Original TTD Industries
And what is the Color "Magic Brown" (In Palette is it named "Block Cycles")? What does it do in Gameplay?
Oh and can we now Create a Station w/ Animation?
They are the Graphics from the Original TTD Industries
And what is the Color "Magic Brown" (In Palette is it named "Block Cycles")? What does it do in Gameplay?
Oh and can we now Create a Station w/ Animation?
- Attachments
-

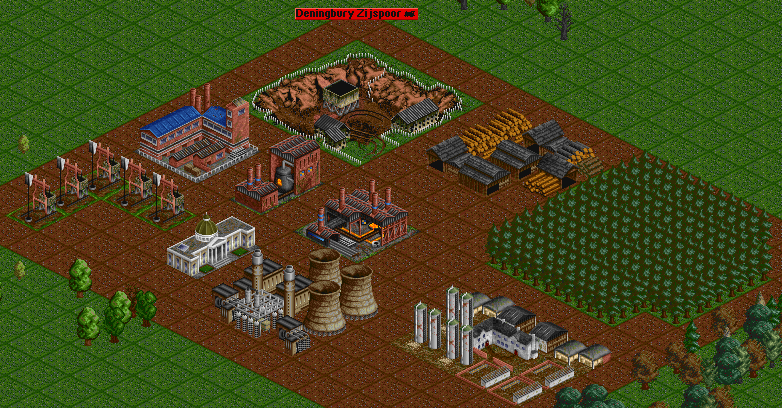

- Industrial Station Tiles 1.png (127 KiB) Viewed 3867 times
-
