resurrection of diagonal level and clear patch
Below you can find the patches diagonal levelling. The "tileiter" patch only implements the tile iterators which can be reused for other purposes. It also rewrites the normal levelling and clearing methods to use the orthogonal iterator. The "diaglvl" patch implements the actual levelling and clearing on top of the diagonal iterator. For convenience I also provide an all-in-one patch implementing both. Thanks for your feedback.
You can also pull them from my git repository at git://github.com/fonsinchen/openttd-cargodist.git
Each patch has its own branch. The branches are called "tileiter" and "diaglvl".
An up-to-date all-in-one patch at at http://github.com/fonsinchen/openttd-ca ... aglvl.diff
It applies to the trunk version given in http://github.com/fonsinchen/openttd-ca ... ERSION.txt
You can also pull them from my git repository at git://github.com/fonsinchen/openttd-cargodist.git
Each patch has its own branch. The branches are called "tileiter" and "diaglvl".
An up-to-date all-in-one patch at at http://github.com/fonsinchen/openttd-ca ... aglvl.diff
It applies to the trunk version given in http://github.com/fonsinchen/openttd-ca ... ERSION.txt
Last edited by fonso on 10 Jun 2010 21:18, edited 5 times in total.
The guy on the picture is not me, it's Alonso.
Re: resurrection of diagonal level and clear patch
I'll try.
One argument can be that there are people that don't know of all fancy CTRL-options available in OpenTTD. If you follow the development of OpenTTD you'll learn the new CTRL behaviors one after another but if you are new to OpenTTD it can take long time to find all various nice features that are "hidden" on the CTRL-key.
I don't know if anyone have vented any such comments in the previous thread but sometimes people do vent such things on patches. But add a note that CTRL toggles diagonal operation in the tooltip of the affected buttons in the landscape toolbar and it should be enough I think. (Let's leave out the discussion about if tooltips should be shown automatically or not)
EDIT: I did my homework and read through two old thread on the subject and only found one argument. That there is another patch using CTRL but it was argued that diagonal leveling is more useful and therefor should use CTRL. http://www.tt-forums.net/viewtopic.php?p=668831#p668831
One argument can be that there are people that don't know of all fancy CTRL-options available in OpenTTD. If you follow the development of OpenTTD you'll learn the new CTRL behaviors one after another but if you are new to OpenTTD it can take long time to find all various nice features that are "hidden" on the CTRL-key.
I don't know if anyone have vented any such comments in the previous thread but sometimes people do vent such things on patches. But add a note that CTRL toggles diagonal operation in the tooltip of the affected buttons in the landscape toolbar and it should be enough I think. (Let's leave out the discussion about if tooltips should be shown automatically or not)
EDIT: I did my homework and read through two old thread on the subject and only found one argument. That there is another patch using CTRL but it was argued that diagonal leveling is more useful and therefor should use CTRL. http://www.tt-forums.net/viewtopic.php?p=668831#p668831
My OpenTTD contributions (AIs, Game Scripts, patches, OpenTTD Auto Updater, and some sprites)
Junctioneer (a traffic intersection simulator)
Junctioneer (a traffic intersection simulator)
Re: resurrection of diagonal level and clear patch
Ah, I see, thanks. Somehow I didn't realize they meant the drag&draw patch. Why does the drag&draw patch need the CTRL key anyway? Would anyone notice if drag&draw became the default behaviour for raise and lower? I mean, it's pretty much what you'd expect when keeping the mouse button pressed and moving the cursor around, isn't it? Like that only explicit levelling would actually do levelling. At the same time I wouldn't have to care about diagonal raise and lower. And as an additional benefit we'd get rid of the problem that raise can lower terrain in certain situations (and the other way round). Perhaps we should have a poll: Who is actually using area raise and lower instead of raising or lowering one tile and then using level from there?
We still need a solution for drag&draw levelling then ... any ideas? Do we need it?
We still need a solution for drag&draw levelling then ... any ideas? Do we need it?
The guy on the picture is not me, it's Alonso.
Re: resurrection of diagonal level and clear patch
Well, I've been trying my luck with the devs about my drag&draw terraform before, but they didn't seem too interested.. even when I tuned it down to a scedit-only version that doesn't use CTRL, after one of them proposed that to me (they seem reluctant to add stuff that uses CTRL), I got no more feedback after that.
Sorry for having not updated it for a while, been busy with university lately...
edit: okay, I have to withdraw the part about no answer.. SmatZ wrote an answer in my flyspray task 2 days ago.
Sorry for having not updated it for a while, been busy with university lately...
edit: okay, I have to withdraw the part about no answer.. SmatZ wrote an answer in my flyspray task 2 days ago.
Re: resurrection of diagonal level and clear patch
A somewhat simplified version of the same patch. Does the same thing, but eliminates the if-else ugliness. The issue with consistency and CTRL usage isn't resolved due to lack of better ideas. Perhaps I should take a look at that Flyspray thing, too ...
- Attachments
-
- diagonal_demolish_and_leveling_r13670.diff
- (17.32 KiB) Downloaded 348 times
The guy on the picture is not me, it's Alonso.
- planetmaker
- OpenTTD Developer
- Posts: 9432
- Joined: 07 Nov 2007 22:44
- Location: Sol d
Re: resurrection of diagonal level and clear patch
I do . But that's indeed something I could live without, if I trade diagonal terraform tools for thatfonso wrote:Who is actually using area raise and lower instead of raising or lowering one tile and then using level from there?
OpenTTD: manual | online content | translations | Wanted contributions and patches
#openttdcoop: blog | wiki | public server | DevZone | NewGRF web translator
DevZone - home of the free NewGRFs: OpenSFX | OpenMSX | OpenGFX | Swedish Rails | OpenGFX+ Trains|RV|Industries|Airports|Landscape | NML
Re: resurrection of diagonal level and clear patch
New version with some cosmetic changes.
- Attachments
-
- diagonal_demolish_and_leveling_r13890.diff
- (17.35 KiB) Downloaded 411 times
The guy on the picture is not me, it's Alonso.
Re: resurrection of diagonal level and clear patch
I would trade both the diagonal etc tool and the raise/lower area tool for the "paint" (drag&draw) toolplanetmaker wrote:I do . But that's indeed something I could live without, if I trade diagonal terraform tools for thatfonso wrote:Who is actually using area raise and lower instead of raising or lowering one tile and then using level from there?
Re: resurrection of diagonal level and clear patch
renamed some variables as requested. Fixed some indentation problems.
- Attachments
-
- diaglvl_r14004.diff
- (18.14 KiB) Downloaded 288 times
The guy on the picture is not me, it's Alonso.
Re: resurrection of diagonal level and clear patch
new version with iterators instead of duplicated code, flags for leveling modes and cosmetics.
- Attachments
-
- diaglvl_r14012.diff
- (17.97 KiB) Downloaded 269 times
The guy on the picture is not me, it's Alonso.
Re: resurrection of diagonal level and clear patch
Nice patch, I hope this'll make it to trunk someday.
Some small comments about the style:
You should use brackets if you put h++ on a different, and always for else statements. So it'll become.
You do this some more times in your patch.
Looks like you forgot to change _ctrl_pressed to _ctrl_pressed ? LEVEL_DIAG : 0 on this line, and for CmdClearArea in general.
Some small comments about the style:
Code: Select all
+ if (p2 & LEVEL_RAISE)
+ h++;
+ else if (p2 & LEVEL_LOWER)
+ h--;
Code: Select all
+ if (p2 & LEVEL_RAISE) {
+ h++;
+ } else if (p2 & LEVEL_LOWER) {
+ h--;
+ }
Code: Select all
DoCommandP(end_tile, start_tile, _ctrl_pressed, CcPlaySound10, CMD_CLEAR_AREA | CMD_MSG(STR_00B5_CAN_T_CLEAR_THIS_AREA));
- belugas
- OpenTTD Developer
- Posts: 1507
- Joined: 05 Apr 2005 01:48
- Location: Deep down the deepest blue
- Contact:
Re: resurrection of diagonal level and clear patch
Sharp eye Yexo
Let say that this patch has never been closer to trunk inclusion
Let say that this patch has never been closer to trunk inclusion
If you are not ready to work a bit for your ideas, it means they don't count much for you.
OpenTTD and Realism? Well... Here are a few thoughs on the matter.
He he he he
------------------------------------------------------------
Music from the Bloody Time Zones
OpenTTD and Realism? Well... Here are a few thoughs on the matter.
He he he he
------------------------------------------------------------
Music from the Bloody Time Zones
Re: resurrection of diagonal level and clear patch
Thanks Yexo.
The brackets thing was unknown to me. I know I should memorize the coding style better .
The brackets thing was unknown to me. I know I should memorize the coding style better .
The guy on the picture is not me, it's Alonso.
Re: resurrection of diagonal level and clear patch
Next version with all if-else bracketified, where needed and CmdClearArea also uses LevelMode (although I could argue about that ...).
- Attachments
-
- diaglvl_r14018.diff
- (18.05 KiB) Downloaded 350 times
The guy on the picture is not me, it's Alonso.
Re: resurrection of diagonal level and clear patch
I don't think LevelMode should be declared in command_type.h.
Another minor code-style thing; can you place the { after a function on a new line. There are still some missing braces around some if () statements.
Another minor code-style thing; can you place the { after a function on a new line. There are still some missing braces around some if () statements.
He's like, some kind of OpenTTD developer.
Re: resurrection of diagonal level and clear patch
new version with (hopefully) all the brackets correct now, LevelMode divided into LevelMode and Orientation, iterating with *Iterator::end.
Edit: forgot the brackets at function start; corrected now.
Edit: forgot the brackets at function start; corrected now.
- Attachments
-
- diaglvl_r14020.diff
- (19.25 KiB) Downloaded 311 times
The guy on the picture is not me, it's Alonso.
Re: resurrection of diagonal level and clear patch
To sum it up:
- blathijs likes it as it is now
- peter1138 finds the *Iterator::end confusing because it contains "random values"
- hylje considers the whole idea of C++ iterators braindead
- others are silent
I don't care. I'll happily make a java style iterator of it, or change it back so that you have to dereference it to get the end condition or insert a special "end" flag somewhere or even make a common base class which provides an empty "end" member or whatever. But I'm at a loss now. Please comment.
- blathijs likes it as it is now
- peter1138 finds the *Iterator::end confusing because it contains "random values"
- hylje considers the whole idea of C++ iterators braindead
- others are silent
I don't care. I'll happily make a java style iterator of it, or change it back so that you have to dereference it to get the end condition or insert a special "end" flag somewhere or even make a common base class which provides an empty "end" member or whatever. But I'm at a loss now. Please comment.
The guy on the picture is not me, it's Alonso.
Re: resurrection of diagonal level and clear patch
ok, now I have two alternative versions. One with java-style iterators which is very concise and clean and one with more elaborate c++-style iterators which provides an extra class InvalidIterator, so that I don't need to fill the invalid iterator with random stuff.
- Attachments
-
- diaglvl_invit_r14026.diff
- (20.08 KiB) Downloaded 190 times
-
- diaglvl_java_r14026.diff
- (17.71 KiB) Downloaded 174 times
The guy on the picture is not me, it's Alonso.
- RSpeed tycoonfreak
- Transport Coordinator
- Posts: 349
- Joined: 02 Feb 2006 13:17
- Location: Azewijn The netherlands
- Contact:
Re: resurrection of diagonal level and clear patch
I like this idea, can i see a screenshot please?
Visit The Fake Airport Website
Hobbys: being 18 years old, soccer, go karting, and transport tycoon.
Hobbys: being 18 years old, soccer, go karting, and transport tycoon.
Re: resurrection of diagonal level and clear patch
Sure. Here are some. Forgive the strange screenshot windows ... I'll have to investigate that.RSpeed tycoonfreak wrote:I like this idea, can i see a screenshot please?
- Attachments
-

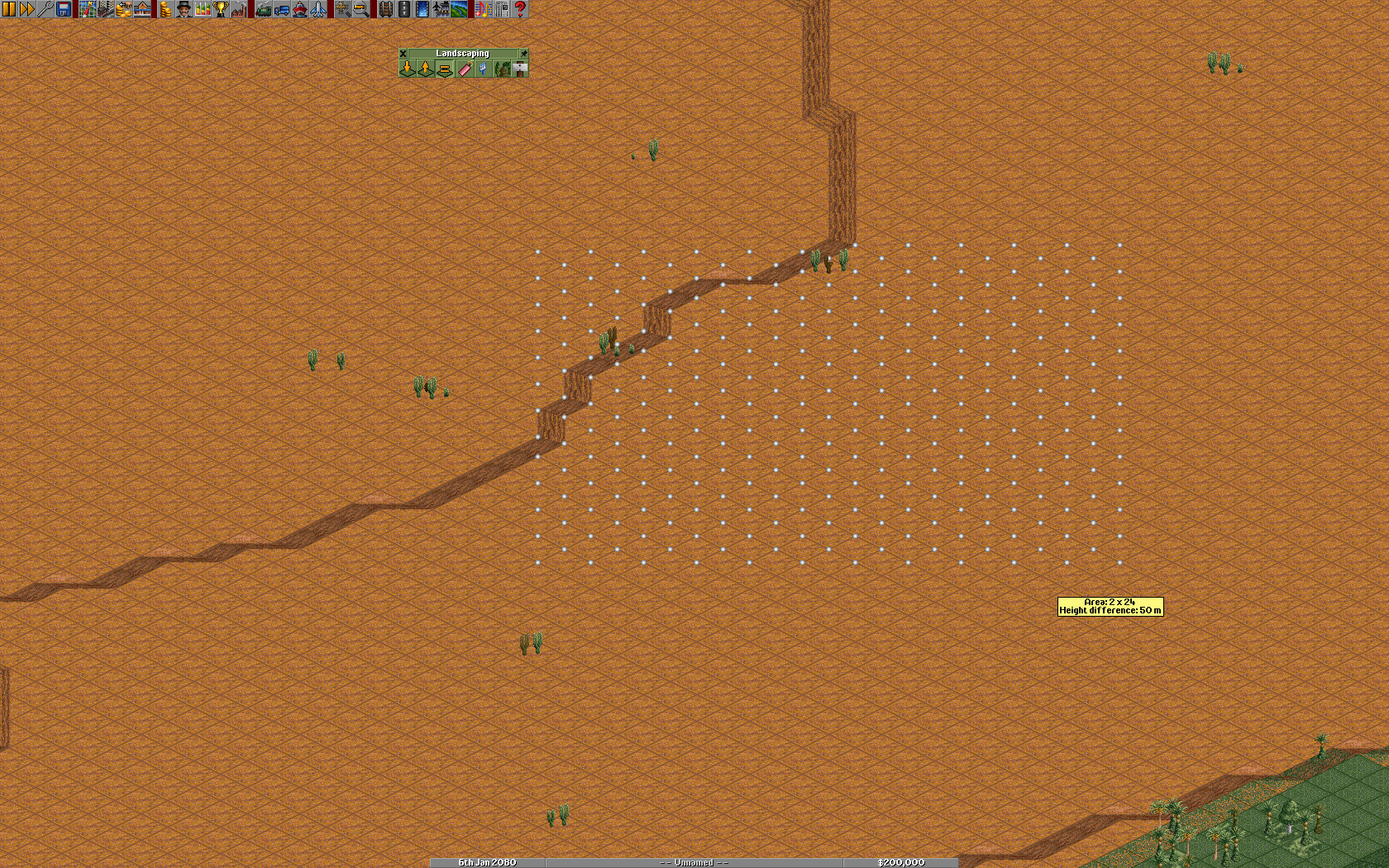

- level_highlight.png
- Highlight area for leveling
- (57.26 KiB) Downloaded 520 times
-
- level_action.png
- and do the leveling
- (69.21 KiB) Downloaded 485 times
-
- demolish_action.png
- *bang* (no highlight for demolish shown because of 3 file limit)
- (56.75 KiB) Downloaded 469 times
The guy on the picture is not me, it's Alonso.
