Area Terraform (in trunk r11759)
Sooo, i decided today (actually yesterday, past midnight here already ) to get into coding for OTTD, and made this patch.
It changes the behavior of the raise land and lower land tools to be drag- and dropable. I thought this would be nice to have because i always neglected them and used the level land tool instead.
You can still use them to raise or lower a single dot (only that now it's done on mouse_release not mouse_click) - and new: you can drag an area, and the whole area will be leveled to the level of starttile +1 or -1 when you raise or lower, respectively.
Note that it does not raise/lower each dot exactly by one. I thought about which of the two behaviors i want to make, and took the more level-ish one, because:
1) I think it's more intuitive / useful
2) It was easier to code
---
Codewise, i decided to give CmdLevelLand a second parameter (it was unused before) that specifies the difference of height to level. e.g. if called with 0, it just levels (old behavior, used by level). if called with -1, it levels to start_tile's height -1 (used by lower). if called with +1 ut levels to start_tile's height +1 (used by raise).
theoretically, you could call it with +5 and it'll still work, leveling all to 5 higher than the start tile. but that is never used.
sooo what do you think? all kinds of reviews welcome
---
Known Bugs:
none atm
---

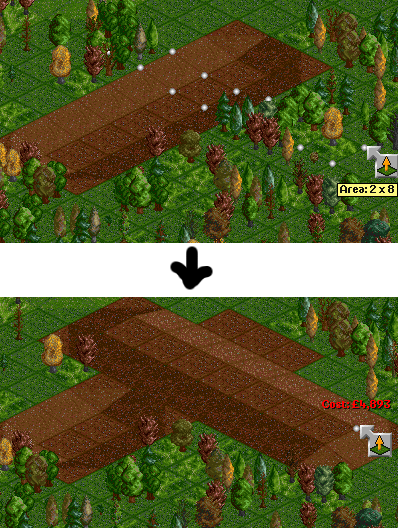

Screenshots ---
Credits
Thanks to:
boekabart, dihedral and frosch for your kind help
all who tested this and gave me feedback
---
edit: Screenshots.
edit: Known Bug.
edit: Credits.
edit: new version.
It changes the behavior of the raise land and lower land tools to be drag- and dropable. I thought this would be nice to have because i always neglected them and used the level land tool instead.
You can still use them to raise or lower a single dot (only that now it's done on mouse_release not mouse_click) - and new: you can drag an area, and the whole area will be leveled to the level of starttile +1 or -1 when you raise or lower, respectively.
Note that it does not raise/lower each dot exactly by one. I thought about which of the two behaviors i want to make, and took the more level-ish one, because:
1) I think it's more intuitive / useful
2) It was easier to code
---
Codewise, i decided to give CmdLevelLand a second parameter (it was unused before) that specifies the difference of height to level. e.g. if called with 0, it just levels (old behavior, used by level). if called with -1, it levels to start_tile's height -1 (used by lower). if called with +1 ut levels to start_tile's height +1 (used by raise).
theoretically, you could call it with +5 and it'll still work, leveling all to 5 higher than the start tile. but that is never used.
sooo what do you think? all kinds of reviews welcome
---
Known Bugs:
none atm
---
Screenshots ---
Credits
Thanks to:
boekabart, dihedral and frosch for your kind help
all who tested this and gave me feedback
---
edit: Screenshots.
edit: Known Bug.
edit: Credits.
edit: new version.
- Attachments
-
- area_terraform_r11754.diff
- (3.5 KiB) Downloaded 154 times
Last edited by Roujin on 04 Jan 2008 19:02, edited 9 times in total.
- athanasios
- Tycoon
- Posts: 3138
- Joined: 23 Jun 2005 00:09
- Contact:
Re: Area Terraform (my first patch)
To be honest I will not compile this patch, but it is very cool and I like such a feature to be in trunk!
http://members.fortunecity.com/gamesart
"If no one is a fool I am also a fool." -The TTD maniac.
I prefer to be contacted through PMs. Thanks.
"If no one is a fool I am also a fool." -The TTD maniac.
I prefer to be contacted through PMs. Thanks.
Re: Area Terraform (my first patch)
By what i have heard about adding patches with Tortoisesvn is right click and appply patch which i did and then compile and so far it worked the files were updated and it compiled loaded a new game went into the landscapeing tools and tried to drag and drop increas/decrease some land and it didnt work it just worked like the old way???
Hope this was helpfull!
Hope this was helpfull!
My Patches: Lifetime profit patch | Improved Shares [ON HIATUS]
Re: Area Terraform (my first patch)
hm i don't know why it wouldn't work... has someone else tested it already? anyoooone? *echo*
edit: misusing old post for uploading image
edit: misusing old post for uploading image
- Attachments
-
- patches_v1_title.png (493 Bytes) Viewed 46890 times
-
- patches_v1_wiki.png (266 Bytes) Viewed 512127 times
-
- patches_v1_seperator.png (211 Bytes) Viewed 515249 times
Last edited by Roujin on 01 Mar 2008 13:17, edited 1 time in total.
Re: Area Terraform (my first patch)
I've just compiled it; works fine here.
Re: Area Terraform (my first patch)
okaay... and? do you like it? some feedback would be really nice, even if it says my patch is utter crap
am I really the only one who thinks that the current raise/lower tool are missing area usability? there doesn't seem to be much interest in this
edit: misusing post for images
am I really the only one who thinks that the current raise/lower tool are missing area usability? there doesn't seem to be much interest in this
edit: misusing post for images
- Attachments
-
- patches_v1_patch1.png (605 Bytes) Viewed 46862 times
-
- patches_v1_patch2.png (926 Bytes) Viewed 46855 times
-
- patches_v1_patch3.png (661 Bytes) Viewed 512027 times
Last edited by Roujin on 01 Mar 2008 15:56, edited 1 time in total.
Re: Area Terraform (my first patch)
To be honest, I can't really think of a moment when I'd use this new behaviour...
Levelling land is one thing, but levelling and also (de|in)creasing the height doesn't seem that useful to me.
Levelling land is one thing, but levelling and also (de|in)creasing the height doesn't seem that useful to me.
Re: Area Terraform (my first patch)
I think it would be pretty useful.
It might save you two clicks in several situations. And two clicks * several situations is a lot of time saved.
It might save you two clicks in several situations. And two clicks * several situations is a lot of time saved.
Re: Area Terraform (my first patch)
well, sometimes i want to lower or raise some adjacent edges, say if i want to make a tunnel entrance (two edges down) or a hill or some sorts (possibly several edges up) - currently for the first example i would click two times with lower tool, for the latter example i would probably raise one tile and then switch to the level land tool.
the behavior of my patch would reduce this a bit, especially the "raise one edge then switch to level tool to make the rest" which i personally find annoying.
I know it's not the ultra super duper new feature ( ), but i do think there are some little situations where this can be useful
Plus, it doesn't break any old behavior, except that the single tile raise is now on mouse_release instead of mouse_down, which I think is not really that bothersome.
thanks for your feedback
PS: Maybe I should make a vote to get an overall impression if people find this useful or not...
edit: misusing post for images
the behavior of my patch would reduce this a bit, especially the "raise one edge then switch to level tool to make the rest" which i personally find annoying.
I know it's not the ultra super duper new feature ( ), but i do think there are some little situations where this can be useful
Plus, it doesn't break any old behavior, except that the single tile raise is now on mouse_release instead of mouse_down, which I think is not really that bothersome.
thanks for your feedback
PS: Maybe I should make a vote to get an overall impression if people find this useful or not...
edit: misusing post for images
- Attachments
-
- patches_v1_patch4.png (596 Bytes) Viewed 512544 times
-
- patches_v1_patch5.png (620 Bytes) Viewed 46879 times
-
- patches_v1_patch6.png (429 Bytes) Viewed 511806 times
Last edited by Roujin on 01 Mar 2008 15:57, edited 1 time in total.
-
- Transport Coordinator
- Posts: 333
- Joined: 25 Aug 2005 09:44
- Location: Eindhoven, Netherlands
Re: Area Terraform (now with vote)
Good patch, I don't see what anyone can have against it, in fact.
Coding style is flawless, but there is one thing I would do:
Rename the enums to match what they do a little more precisely:
DDSP_RAISE_AREA -> DDSP_LEVEL_AND_RAISE_AREA
(and similar for LOWER of course)
Raise Area would do the other thing you describe (probably less useful, indeed) - raise the area by 1 level.
Congrats on this patch - If I were you, I'd add it as a feature 'bug' in bugs.openttd.org so you make sure the devs see it!
Coding style is flawless, but there is one thing I would do:
Rename the enums to match what they do a little more precisely:
DDSP_RAISE_AREA -> DDSP_LEVEL_AND_RAISE_AREA
(and similar for LOWER of course)
Raise Area would do the other thing you describe (probably less useful, indeed) - raise the area by 1 level.
Congrats on this patch - If I were you, I'd add it as a feature 'bug' in bugs.openttd.org so you make sure the devs see it!
-
- Tycoon
- Posts: 1395
- Joined: 12 Jun 2004 00:37
- Location: United Kingdom of Great Britain and Northern Ireland
- Contact:
Re: Area Terraform (now with vote)
That looks nice, but can it do diagnals? Because I can do straights easily enough using the "level" tool (admittedly cheating, and this is better, but still). This leaves diagnals as requiring lots of clicks, just like straights used to use too.
Re: Area Terraform (now with vote)
@boekabart:
---
@Moriarty: i think someone else made a patch for diagonal levelling. I don't know what's the current status, but if it works i could have a look at it and maybe try to combine it with my patch, with author's permission. CTRL is unused for raise and lower, so that could also be used to toggle from rectangular to diagonal.
But that is for later on, first i have to fix bug. Thanks for the suggestion though.
---
Bug i found myself and am fixing now: lowering under min_altitude freezes game. raising over max altitude doesn't show an error (does nothing).
I just forgot to think about these cases while reusing/altering the level command of course leveling can't possibly go under min_altitude or over max_altitude
edit: misusing post for images
that's because i didn't have to write much myself just reused stuff and changed behavior a little trying not to break existing coding styleCoding style is flawless
will change that, thanks for suggestion. though LEVEL_AND_RAISE_AREA sounds to me like it is used for leveling and for raising, not for one action called "level and raise". i don't know how to name it else to make it clear... maybe DDSP_LEVELRAISE_AREA?DDSP_RAISE_AREA -> DDSP_LEVEL_AND_RAISE_AREA
Thanks I was hesitating about that, because i got the impression there's not much interest in this patch. But now with all the positive answers, I'll add it to flyspray. But not just now, because i found a bug myself yet to fix. (see below)Congrats on this patch - If I were you, I'd add it as a feature 'bug' in bugs.openttd.org so you make sure the devs see it!
---
@Moriarty: i think someone else made a patch for diagonal levelling. I don't know what's the current status, but if it works i could have a look at it and maybe try to combine it with my patch, with author's permission. CTRL is unused for raise and lower, so that could also be used to toggle from rectangular to diagonal.
But that is for later on, first i have to fix bug. Thanks for the suggestion though.
---
Bug i found myself and am fixing now: lowering under min_altitude freezes game. raising over max altitude doesn't show an error (does nothing).
I just forgot to think about these cases while reusing/altering the level command of course leveling can't possibly go under min_altitude or over max_altitude
edit: misusing post for images
- Attachments
-
- patches_v1_patch7.png (588 Bytes) Viewed 513145 times
-
- patches_v1_patch8.png (558 Bytes) Viewed 46889 times
-
- patches_v1_patch9.png (571 Bytes) Viewed 46938 times
Last edited by Roujin on 01 Mar 2008 15:58, edited 1 time in total.
Re: Area Terraform (now with vote)
new version, bumped to r11278
Changes:
- renamed DDSP_RAISE_AREA -> DDSP_RAISE_AND_LEVEL_AREA
- renamed DDSP_LOWER_AREA -> DDSP_LOWER_AND_LEVEL_AREA
Bugfixes:
- lowering below zero and raising above max_height now properly shows error
---
another thing i was thinking about was which sound to use, the one for terraforming, or the explosion sound the level tool uses. I decided to stick with the old one ("crrrrrp" ) for now, also because of consistency.
i think i fixed all bugs now, and hopefully didn't introduce any new ones please tell me if you find anything, if nothing shows up, i'll consider adding it to flyspray to have the devs have a look at it
download @first post
Changes:
- renamed DDSP_RAISE_AREA -> DDSP_RAISE_AND_LEVEL_AREA
- renamed DDSP_LOWER_AREA -> DDSP_LOWER_AND_LEVEL_AREA
Bugfixes:
- lowering below zero and raising above max_height now properly shows error
---
another thing i was thinking about was which sound to use, the one for terraforming, or the explosion sound the level tool uses. I decided to stick with the old one ("crrrrrp" ) for now, also because of consistency.
i think i fixed all bugs now, and hopefully didn't introduce any new ones please tell me if you find anything, if nothing shows up, i'll consider adding it to flyspray to have the devs have a look at it
download @first post
Re: Area Terraform (new version r11278)
bumped to r11754.
Re: Area Terraform (r11754)
This patch can be very usefull. Nice.
Re: Area Terraform (r11754)
I think it's a nice patch. It's much more intuitive than lots of clicks or one click with raise tool, then drag with level tool (when raising an area).
- planetmaker
- OpenTTD Developer
- Posts: 9432
- Joined: 07 Nov 2007 22:44
- Location: Sol d
Re: Area Terraform (r11754)
I do agree. I frequently wonder why the lower and raise work differently from the level tool. I hope it will make it into trunk.rbenevid wrote:I think it's a nice patch. It's much more intuitive than lots of clicks or one click with raise tool, then drag with level tool (when raising an area).
OpenTTD: manual | online content | translations | Wanted contributions and patches
#openttdcoop: blog | wiki | public server | DevZone | NewGRF web translator
DevZone - home of the free NewGRFs: OpenSFX | OpenMSX | OpenGFX | Swedish Rails | OpenGFX+ Trains|RV|Industries|Airports|Landscape | NML
Re: Area Terraform (r11754)
It has! In r11759...planetmaker wrote:I hope it will make it into trunk.
He's like, some kind of OpenTTD developer.
-
- Tycoon
- Posts: 1656
- Joined: 08 Jun 2007 08:00
Re: Area Terraform (r11754)
Yaaay<CIA-1> OpenTTD: peter1138 * r11759 /trunk/src/ (clear_cmd.cpp gui.h main_gui.cpp terraform_gui.cpp): -Feature: Add drag-n-drop support to the raise/lower land tools. Land is raised/lowered at the start and the rest of the area levelled to match. Patch by Roujin.
Re: Area Terraform (r11754)
congratulation on this nice feat.
