[release] 1927 Express Passenger Carriage (v1.2 - 9/10)

Discuss, get help with, or post new modifications, graphics or related tools for Locomotion in this forum.

Moderator: Locomotion Moderators

User avatar
PikkaBird
Graphics Moderator
Graphics Moderator
Posts: 5391
Joined: 13 Sep 2004 13:21
Location: The Moon
Contact:

[release] 1927 Express Passenger Carriage (v1.2 - 9/10)

Post by PikkaBird » 04 Oct 2004 08:40

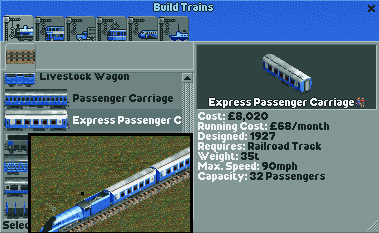

Edit: Updates in Version 1.2:

The lighting is now very much improved, to fit in better with the default stock.
Improved graphics.

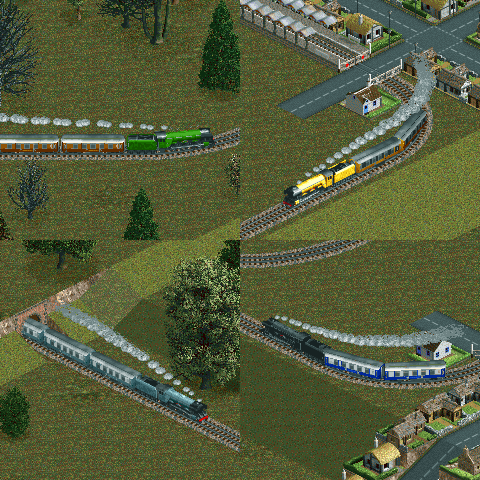

(v1.1 screenshots)

It's (roughly) a Pullman car, but it makes a half decent Gresley teak carriage too.

Introduced: 1927
Obsolete: 1971
Capacity: 30 passengers
Max. Speed: 90 mph

DOWNLOAD
Last edited by PikkaBird on 08 Oct 2004 14:10, edited 2 times in total.

User avatar
mlw_1550
Engineer
Engineer
Posts: 98
Joined: 08 Mar 2004 00:39
Location: Good ol' Portugal

Post by mlw_1550 » 04 Oct 2004 10:19

Again, very nice!
Pikka, can you tell me the correct angles, etc, for the rendering, please?
That's CP 1564, a Montreal Locomotives Works built locomotive

User avatar
Hyronymus
Tycoon
Tycoon
Posts: 13189
Joined: 03 Dec 2002 10:36
Location: The Netherlands
Contact:

Post by Hyronymus » 04 Oct 2004 10:26

Pikka, maybe you and a few other graphics MODders can write a short readme for other wannabe-MODders with angles and other relevant stuff. This coach looks nice btw!

User avatar
PikkaBird
Graphics Moderator
Graphics Moderator
Posts: 5391
Joined: 13 Sep 2004 13:21
Location: The Moon
Contact:

Post by PikkaBird » 04 Oct 2004 10:53

mlw_1550 wrote:Again, very nice!
Pikka, can you tell me the correct angles, etc, for the rendering, please?
I'll try to put together a proper guide some time (with pictures, this would be much easier to explain with pictures :) ), but for now, here it is quickly off the top of my head; No responsibility taken for anything I got wrong. :oops:

Camera Setup in 3dsm:

Camera is looking at the world origin.
Camera is in Orthographic Projection (so, no perspective).
Camera is equidistantly positioned to the left and to the front of the origin (so, looking at the origin at 45 degrees.
Camera is raised to look down at the origin. The downward angle is 30 degrees from horizontal

Dummy (Helper) Setup in 3dsm:

Tilt dummy, at the world origin.
Rotation dummy, slightly below the tilt dummy.

The tilt dummy is attached to the rotation dummy. The vehicle to be rendered is attached to the tilt dummy, and is positioned above the origin (as if the origin is ground or rail level).

Render Sequences

This is the full render sequence of 184 sprites for an non-animated locomotive with bogie:

Sprites 0-63
Tilt is 0 degrees. Rotate 360 degrees clockwise over 64 frames.
These are the level sprites.

Sprites 64-67
Tilt is 6 degrees. Rotate 360 degrees clockwise over 4 frames.
These are the transition-to-decending sprites.

Sprites 68-71
Tilt is -6 degrees. Rotate 360 degrees clockwise over 4 frames.
These are the transition-to-climbing sprites.

Sprites 72-103
Tilt is 12 degrees. Rotate 360 degrees clockwise over 32 frames.
These are the decending slope sprites.

Sprites 104-135
Tilt is -12 degrees. Rotate 360 degrees clockwise over 32 frames.
These are the climbing slope sprites.

Sprites 136-151
Tilt is 0. Rotate 360 degrees clockwise over 16 frames.
These are the level bogie sprites.

Sprites 152-167
Tilt is 12 degrees. Rotate 360 degrees clockwise over 16 frames.
These are the decending slope bogie sprites.

Sprites 168-183
Tilt is -12 degrees. Rotate 360 degrees clockwise over 16 frames.
These are the climbing slope bogie sprites.

Hope that was at least vaguely helpful. :?
Last edited by PikkaBird on 05 Oct 2004 01:19, edited 1 time in total.

Davie_UCF
Traffic Manager
Traffic Manager
Posts: 144
Joined: 11 Sep 2004 19:55
Location: Colchester, Essex, United Kingdom

Post by Davie_UCF » 04 Oct 2004 11:05

Wooow Pikka your on fire.. how about HAA HAA? :lol:

Davie
East of England/East Anglia scenario/map released!! http://www.tt-forums.net/viewtopic.php?p=205440#205440

User avatar
mlw_1550
Engineer
Engineer
Posts: 98
Joined: 08 Mar 2004 00:39
Location: Good ol' Portugal

Post by mlw_1550 » 04 Oct 2004 13:04

Thank you very much Pikka! It's a bit complicated, since I'm more familiar with AutoCAD, I've got no experience with animation in Max. I'll give it a try and let you know... :wink:
That's CP 1564, a Montreal Locomotives Works built locomotive

-matt-
Engineer
Engineer
Posts: 92
Joined: 07 May 2003 15:14
Location: UK
Contact:

Post by -matt- » 04 Oct 2004 13:24

Lookin good pikkabird. I will have to download this as well as your warship.

Cheers
Matt (formerly known as 250787)

For videos of uk railways visit http://www.ukrailvideos.uni.cc
For discussing UK railways visit
http://www.ukrailforums.uni.cc

jdtech
Engineer
Engineer
Posts: 119
Joined: 03 Oct 2004 18:20
Location: Southampton, England

Post by jdtech » 04 Oct 2004 15:33

Nice one Dave! (Pikka, not Davie)

John
444s 4 SWT!

User avatar
norfolksouthern37
Transport Coordinator
Transport Coordinator
Posts: 279
Joined: 04 Jun 2004 17:43

Post by norfolksouthern37 » 04 Oct 2004 20:03

pikka i used the angles a bit differently, but it may also have to do with the camera setup i did. i used a rectangle block so that id get it perfectly aligned with the reails and i ended up using 6 degrees for the transition and 12 degrees for the uphill. this way the block lined up with the rails in every situation.
however i noticed you did not mention a camera, i used the standard 200 mm lens about 400 feet away with orthographic projection turned on, since in locomotion things dont get smaller the farther away they are.

i posted a max file at my site with the exact camera and angles ive used for about 8 different trains now. http://www.startrekgaming.com/moon_xl/l ... camera.rar

i ckecked your carriages and there are definately some problems on the slopes, meaning the angles are still not precise. just look at the bottom sill compared to the rail, and the apprent 'stepping' of the cars.




User avatar
PikkaBird
Graphics Moderator
Graphics Moderator
Posts: 5391
Joined: 13 Sep 2004 13:21
Location: The Moon
Contact:

Post by PikkaBird » 04 Oct 2004 21:11

Hmm. :?

They're definitely closer than the Warship though, you can see even in that screenshot.

I'll have a looksee. :oops:

User avatar
norfolksouthern37
Transport Coordinator
Transport Coordinator
Posts: 279
Joined: 04 Jun 2004 17:43

Post by norfolksouthern37 » 04 Oct 2004 21:37

yes, i thoguht the warship was great, but it looks... overweight? like its being pressed down onto the tracks really hard. :)

User avatar
PikkaBird
Graphics Moderator
Graphics Moderator
Posts: 5391
Joined: 13 Sep 2004 13:21
Location: The Moon
Contact:

Post by PikkaBird » 05 Oct 2004 01:17

Ok, it looks like 12 degrees is the go. :) Funny, mathematics says it should be 14 degrees (the gradient in Loco is, of course, 1 in 4, not 1 in 8 as I said before)... but that appears too steep in the game.

I have updated the carriage to slope at 12 degrees, and also improved the graphics somewhat (expanded the colour bars beside the windows, and it also now rides higher on its bogies to better match the default stock).

The Warship is getting the same treatment (including the higher riding, so it won't look "pressed down" any more :) ). Next step is to play with the lighting and try to get it to match the default stock better.

User avatar
norfolksouthern37
Transport Coordinator
Transport Coordinator
Posts: 279
Joined: 04 Jun 2004 17:43

Post by norfolksouthern37 » 05 Oct 2004 02:00

thanks!

User avatar
Sellu
Engineer
Engineer
Posts: 98
Joined: 24 Sep 2004 20:06

Post by Sellu » 05 Oct 2004 09:49

Hmm I used 11.5 degrees in slopes in my bus and it looked fine in max and the game. So Is it really 12 degrees or 11.5?

User avatar
PikkaBird
Graphics Moderator
Graphics Moderator
Posts: 5391
Joined: 13 Sep 2004 13:21
Location: The Moon
Contact:

Post by PikkaBird » 05 Oct 2004 12:24

Sellu wrote:So Is it really 12 degrees or 11.5?
Mathematics suggests it should *really* be 14, if anyone can explain why it's actually less, please do so. :?

I tried 11.25, and 12 certainly seems a lot closer than that. It's much more noticable with carriages though, because when they're strung together you notice the differences in heights. With a bus, any discrepency would be far less noticable.

User avatar
Sellu
Engineer
Engineer
Posts: 98
Joined: 24 Sep 2004 20:06

Post by Sellu » 05 Oct 2004 19:24

Hmm, Does anyone know the angles for tilted trains? It would save A LOT of work for me to get them right at first time.

User avatar
PikkaBird
Graphics Moderator
Graphics Moderator
Posts: 5391
Joined: 13 Sep 2004 13:21
Location: The Moon
Contact:

Post by PikkaBird » 08 Oct 2004 14:19

Bump. See first post for update.

User avatar
Born Acorn
Tycoon
Tycoon
Posts: 7571
Joined: 10 Dec 2002 20:36
Skype: Bornacorn
Location: Wrexham, Wales
Contact:

Post by Born Acorn » 08 Oct 2004 14:25

even better!!!!!! but then again, you are Pikkabird! :wink:

User avatar
TheGrew
Tycoon
Tycoon
Posts: 1723
Joined: 25 Jul 2004 19:25
Location: Warrington UK

Post by TheGrew » 09 Oct 2004 08:10

Image[/quote]
I think this train would be good on the mars senario.
And please can you post it I like it A LOT.
Last edited by TheGrew on 12 Oct 2004 16:49, edited 1 time in total.

User avatar
Born Acorn
Tycoon
Tycoon
Posts: 7571
Joined: 10 Dec 2002 20:36
Skype: Bornacorn
Location: Wrexham, Wales
Contact:

Post by Born Acorn » 09 Oct 2004 09:55

its nothing to do with this thread. Talk to norfolksouthern_37 about that.
