New 4-way junction invented

Post by vinaximus »

Hi all,
I came with this new 4-way junction. I am inspired by 'Ultimate 3-way junction' in Wiki Junctions

Advantages:
Tracks divert before merge.
Easy to build
Not much turning means faster

Disadvantages:
Takes up a large space
As said by the forum Users
Attachments

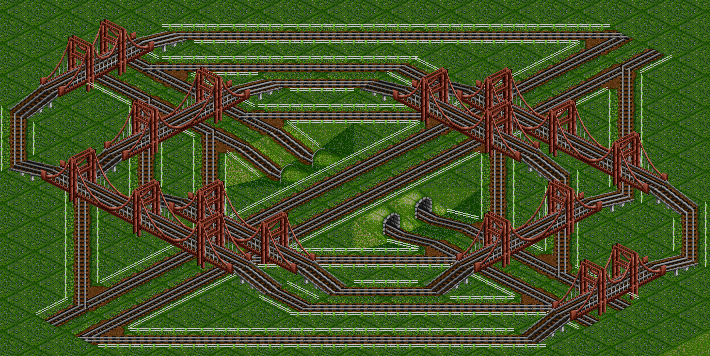

Funley Transport, 18th Jan 1966.png
New 4-way junction
(94.5 KiB) Downloaded 1557 times
Good day building rails

User avatar
SirkoZ
Tycoon
Tycoon
Posts: 1507
Joined: 06 Mar 2004 23:51
Location: The sunny side of Alps

Re: New 4-way junction invented

Post by SirkoZ »

You have four short 45° turns in there - how much do you expect the top speed to be in there?
It's only 88km/h for railway... :!:

Tvel
Engineer
Engineer
Posts: 77
Joined: 29 Mar 2008 22:42
Skype: tvel___
Location: Bulgaria

Re: New 4-way junction invented

Post by Tvel »

SirkoZ wrote:You have four short 45° turns in there - how much do you expect the top speed to be in there?
It's only 88km/h for railway... :!:

that is easy fixable :)
nice work!

User avatar
SirkoZ
Tycoon
Tycoon
Posts: 1507
Joined: 06 Mar 2004 23:51
Location: The sunny side of Alps

Re: New 4-way junction invented

Post by SirkoZ »

Tvel wrote:
SirkoZ wrote:You have four short 45° turns in there - how much do you expect the top speed to be in there?
It's only 88km/h for railway... :!:

that is easy fixable :)
nice work!
That is not the point. ;-)

User avatar
tigerface
Engineer
Engineer
Posts: 93
Joined: 01 Jan 2007 17:29

Re: New 4-way junction invented

Post by tigerface »

What tunnels grf's are you using there?
Formerly thanet-bomber.


deepblue2k8
Engineer
Engineer
Posts: 44
Joined: 06 Sep 2008 12:41
Location: Hamburg, Germany

Re: New 4-way junction invented

Post by deepblue2k8 »

And what do you think about this one? :)

Advantages:
Just 2 turns for direction change with enough space between them.
Branch before merge
Easy to build


Disadvantages:
Branches have different length?
Takes up large amount of space
Attachments
Condhattan Transport, 26th Jul 1951.png
(60.08 KiB) Downloaded 782 times

vanOekelen
Engineer
Engineer
Posts: 28
Joined: 18 Jun 2007 19:06

Re: New 4-way junction invented

Post by vanOekelen »

deepblue2k8 wrote:And what do you think about this one? :)

Advantages:
Just 2 turns for direction change with enough space between them.
Branch before merge
Easy to build


Disadvantages:
Branches have different length?
Takes up large amount of space
That's the basic design I almost always use, but with tunnels instead of bridges.

User avatar
SirkoZ
Tycoon
Tycoon
Posts: 1507
Joined: 06 Mar 2004 23:51
Location: The sunny side of Alps

Re: New 4-way junction invented

Post by SirkoZ »

deepblue2k8 wrote:And what do you think about this one? :)
...
This one is really nice, deepblue2k8. That only "problem" is its size in some instances.

A game or two ago (on the internet servers) I tried to make a really compact one. For the basis I took the old most basic cloverleaf design and inverted it so it would be jam-proof (splits before joins).
Here's what I came up with:

EDIT: It doesn't matter which side you place signals on - trains will always split before they join.
Attachments

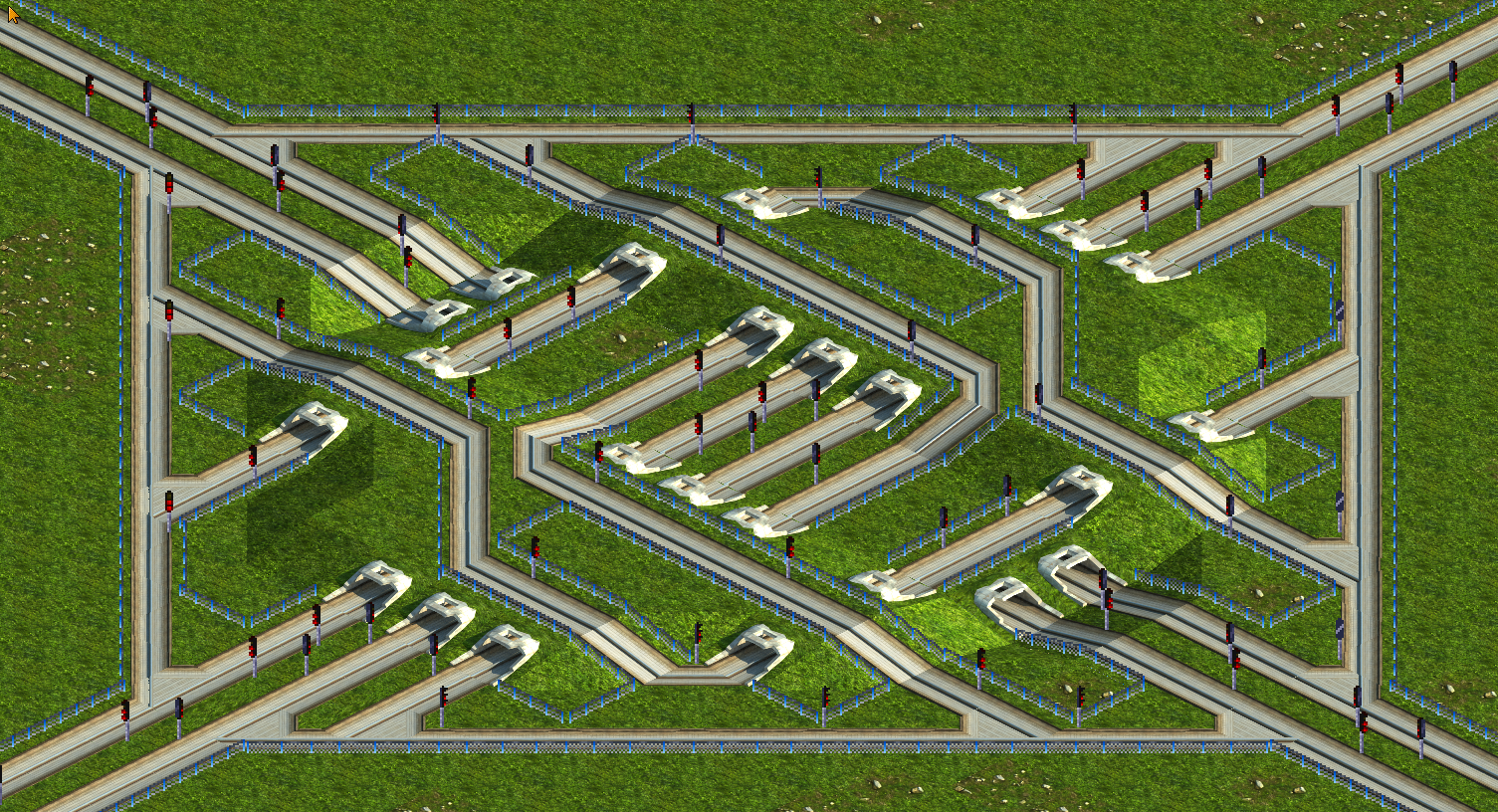

scheme
scheme
in game - symmetrical
in game - symmetrical
as compact as I could squeeze it with only 2 short turns - only after a long bridge
as compact as I could squeeze it with only 2 short turns - only after a long bridge

LordAzamath
Tycoon
Tycoon
Posts: 1656
Joined: 08 Jun 2007 08:00

Re: New 4-way junction invented

Post by LordAzamath »

The long bridges are very bad since we can't have signals on bridges :P
PS: And I stopped the propaganda to support Dave Worley since he got a nice new red hat now.[/color]
I know I have a BBCode error in my signature but I really cba to fix it.

User avatar
SirkoZ
Tycoon
Tycoon
Posts: 1507
Joined: 06 Mar 2004 23:51
Location: The sunny side of Alps

Re: New 4-way junction invented

Post by SirkoZ »

LordAzamath wrote:The long bridges are very bad since we can't have signals on bridges :P
Hey - whatever floats your boat. Just make it bigger then with shorter bridges and longer turns.

User avatar
DJ Nekkid
Tycoon
Tycoon
Posts: 2141
Joined: 30 Nov 2006 20:33

Re: New 4-way junction invented

Post by DJ Nekkid »

try makeing something like that, with LL RR, and not more then 4 tiles unsignaled (i.e. a 2 tile bridge or tunnel + heads/entrances) :):)
Member of the

User avatar
SirkoZ
Tycoon
Tycoon
Posts: 1507
Joined: 06 Mar 2004 23:51
Location: The sunny side of Alps

Re: New 4-way junction invented

Post by SirkoZ »

Well - I have just the thing. :D

I have found this crossing in an old game that frfourg ([fr4g]) and I used. I have tidied up so it doesn't have the slow turns anymore and that it can be put together by combining 4 same quarters of it.
I'll post the copy-paste saved template here and you can tell me if you'd rather it I posted the whole thing. ;-)
Attachments
copypaste_crossing_X_4xLLRR_one-fourth.zip
copy-paste patch template
(563 Bytes) Downloaded 296 times

deepblue2k8
Engineer
Engineer
Posts: 44
Joined: 06 Sep 2008 12:41
Location: Hamburg, Germany

Re: New 4-way junction invented

Post by deepblue2k8 »

Here is a piece of art that I built some time ago. It looks pretty complicated and has some sharp turns in it. So it won't be that good :-)
Attachments

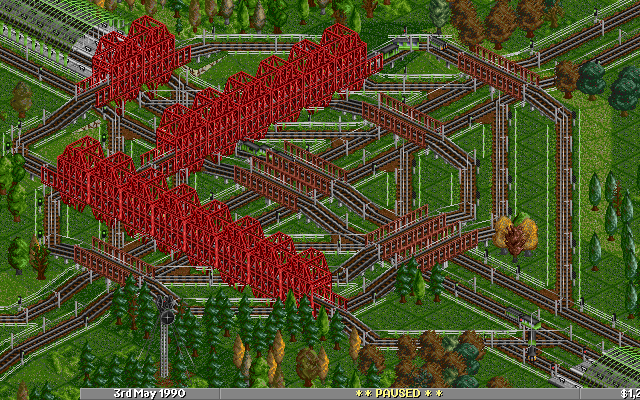

Woodstock Transport, 28th Jul 2048.png
(163.79 KiB) Downloaded 234 times

User avatar
Renzokuken
Engineer
Engineer
Posts: 19
Joined: 08 Jan 2007 18:05
Location: Milan, Italy

Re: New 4-way junction invented

Post by Renzokuken »

eheh, behold! :lol:

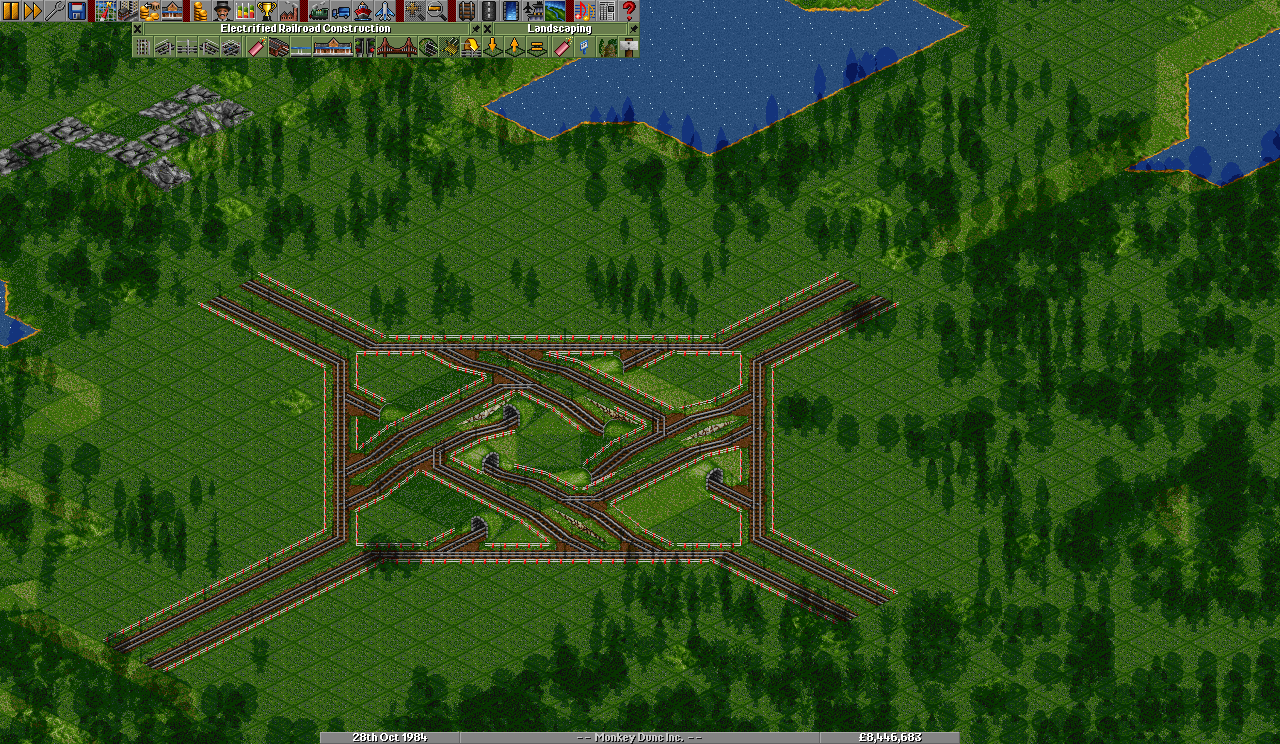

Monkey Dunc Inc., 28th Oct 1984.png
(195.86 KiB) Downloaded 181 times

of course, pros: very compact and "branch before merge"; cons: slow as hell :mrgreen: :mrgreen:
I'm in IT. I'm not paid enough to be nice with you.

Circeus
Traffic Manager
Traffic Manager
Posts: 181
Joined: 07 Jun 2008 21:26

Re: New 4-way junction invented

Post by Circeus »

*squints* Isn't that a compacted Star Junction?

User avatar
CommanderZ
Tycoon
Tycoon
Posts: 1872
Joined: 07 Apr 2008 18:29
Location: Czech Republic
Contact:

Re: New 4-way junction invented

Post by CommanderZ »

Renzokuken wrote:eheh, behold! :lol:

Monkey Dunc Inc., 28th Oct 1984.png

of course, pros: very compact and "branch before merge"; cons: slow as hell :mrgreen: :mrgreen:
I love star junctions :) Btw, make it just two tiles on eax axis larger and the sharp turns should be gone.

User avatar
Renzokuken
Engineer
Engineer
Posts: 19
Joined: 08 Jan 2007 18:05
Location: Milan, Italy

Re: New 4-way junction invented

Post by Renzokuken »

Circeus wrote:*squints* Isn't that a compacted Star Junction?
probably yes, looking at the link, it was just something I created at the moment. don't think it's new , now that i think about it I recall seeing something similar on the forum sometime ago...
I'm in IT. I'm not paid enough to be nice with you.

scorpioprise
Engineer
Engineer
Posts: 1
Joined: 26 Feb 2019 12:28

Re: New 4-way junction invented

Post by scorpioprise »

Hi there, I was investigating where to post a screen of my revised spaghetti junction
Separating the flux has some good effect on the junction, but it still does have slow turns, but no more U-turn on lanes.
Also, the down-pass has a lot of gap in signalling, so it has to be on a "secondary" lane.
What pays back is the compactness.

If you like it, I can explain how to easily and fast build it :wink:
Attachments
(2.63 MiB) Not downloaded yet
